Baseboard 5-1/2" - 51
Baseboard 5-1/2" - 51

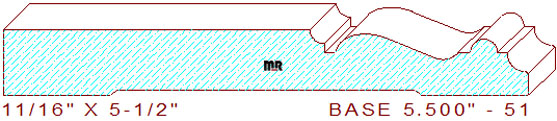

This ageless 5-1/2" - 51 colonial baseboard measures 5.500" wide by .687" thickness, requiring four-quarter lumber for milling on an industrial moulder. The classic profile composes a 3-13/64" broad horizontal line on the left, connected to a 5/32" cove that joins to a 1/8" wide by 3/32" deep sunk fillet in the center, attached to a three tangent radius french curve that merges with a 9/32" wide half round bead flanked by small line segments and a 3/16" cove with a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.600
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$393.00
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$430.50
Total:
$861.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
