Baseboard 5-1/2" - 57

Baseboard 5-1/2" - 57

Baseboard 5-1/2" - 57

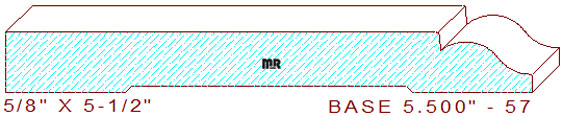

This modest 5-1/2" - 57 base moulding measures 5.500" wide by .625" thickness. The profile comprises a 4-17/32" wide by 3/16" deep stepped fillet on the top center. It transitions into two tangent 27/64" radiuses creating a beautiful ogee leaving a 3/16" thickness dimension at the top of the design. We offer another profile with similar design characteristics in a smaller width for your review and consideration, baseboard 4.750" - 3.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.565
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.50
$355.50
Total:
$711.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
