Baseboard 5-1/2" - 59
Baseboard 5-1/2" - 59

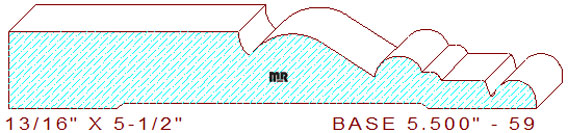

This decorative 5-1/2" - 59 base moulding measures 5.500" wide by .812" thickness. The elegant profile contains a 2-25/64" wide horizontal fillet with a 9/32" radius cove on the top left. it's connected to a thumbnail-shaped arc and a half circle with two stepped areas. These portions join to a 1/32" wide sunk fillet and a 7/32" radius half round bead on the design's right side. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful baseboard detail, one for milling the entire width and the other for milling only the profile portion of the design.
Caution, the cutters will come within .020" of the machine bed plates when milling this detail. We recommend utilizing a wooden, phenolic, or plastic sacrificial bed plate for these milling operations.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.812
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$368.00
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$393.00
Total:
$811.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$455.50
$430.50
Total:
$886.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
