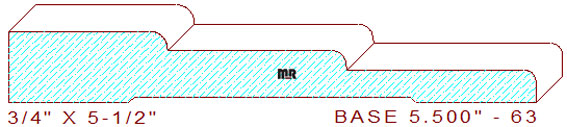

This Southwestern Base Moulding 5-1/2" - 63 measures 5.500" wide by .750" thickness, the stepped profile is comprised of a 1-21/32" wide by 13/64" deep fillet with a 3/16" radius edge connected to a 1-7/8" wide by 13/64" deep straight line with a 5/32" radius edge joined to a 1-31/32" wide by 11/32" thickness section with a 1/8" radius edge at the top of the pattern. The profile is oriented in the machinery to be milled with the thickest side of the profile up against the inside fixed fence of the moulder, this enables the operator to move the pressure shoe element laterally and then downward onto the center portion of the profile, this will assure good hold down capabilities while milling the detail during production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
