Base Moulding 5-1/2" - 9

Base Moulding 5-1/2" - 9

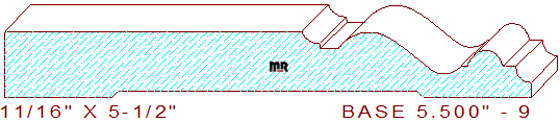

This colonial style baseboard moulding 5-1/2" - 9 measures 5.500" wide by .687" thickness, the detail will require four quarter lumber for milling. This pattern is one of the more popular mop board designs, it is composed of a 3-7/64" wide straight line on the left, connected to a 3/16" cove with a 1/16" vertical step and a 3/16" wide sunk fillet that transitions into a deep down sloping cyma reversa, attached to an elliptical shaped half round bead flanked by small horizontal line segments with a 5/32" cove, leaving a 5/32" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful baseboard detail, one for milling the entire width and the other for cutting just the profile section of the design . From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us help you design a beautiful pattern today.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .534" (top knives) & .063" (bottom cutters.)
