Baseboard 5-5/8" - 2
Baseboard 5-5/8" - 2

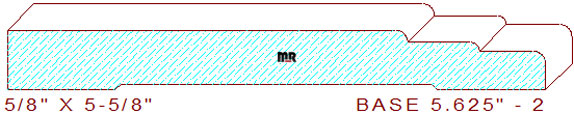

This tiered 5-5/8" - 2 baseboard moulding measures 5.625" wide by .625" thickness, enabling the pattern to be milled out of four-quarter lumber. The custom stepped profile is composed of a 4-3/16" broad horizontal line with a 1/8" round edge on the top center, joined to a 3/4" broad line segment with a 3/32" eased edge, merged with an 11/16" broad flat line with a 1/8" round-over leaving a 13/32" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.625
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$374.50
$374.50
Total:
$749.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$400.00
$400.00
Total:
$800.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$438.25
$438.25
Total:
$876.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
