Base Moulding 5-3/4" - 15

Base Moulding 5-3/4" - 15

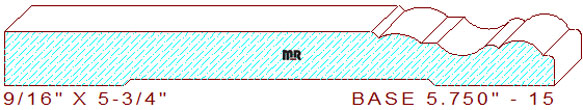

This stylish base moulding 5-3/4" - 15 measures 5.750" wide by .562" thickness. The lovely profile is comprised of a 3-53/64" wide straight horizontal line, connected to a series of geometrical shapes including chamfer, arcs, fillets, scotia, and a 1/16" radius edge positioned at the top of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this creative baseboard design, one for milling the entire detail and the other for cutting just the profile portion of the pattern. New or older style dwelling, we have the ability, knowledge and experience to create moulding designs that will complement the architectural decor of your beautiful home or office.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.750" / Depth of Cut = .443" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
