Base Moulding 5-3/4" - 17

Base Moulding 5-3/4" - 17

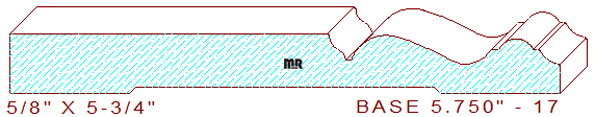

This classic colonial base moulding 5-3/4" - 17 measures 5.750" wide by .625" thickness. The old-world design is comprised of a 3-11/32" wide straight horizontal line, attached to a small cyma recta and sunk fillet that transitions into a deep sloping cyma reversa, joined to a half round bead flanked by small flat lines with a 1/4" cove positioned at the top of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this gorgeous baseboard, one for milling the entire width and the other for cutting just the profile portion of the design, this is ideal for a moulder with two top cutter heads. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.750" / Depth of Cut = .509" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
