Base Moulding 5-3/4" - 2

Base Moulding 5-3/4" - 2

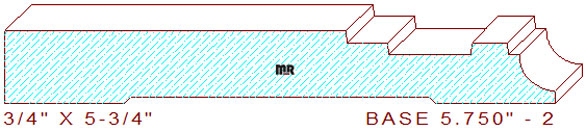

This tiered base moulding 5-3/4" - 2 measures 5.750" wide by .750" thickness. The innovative profile is comprised of a 3-9/16" wide horizontal line, attached to three bidirectional stepped lines separated by a 3/8" wide raised fillet with a 3/8" cove at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision template designs to create knives for this unique baseboard, one for cutting the entire width and the other for milling just the profile portion, this is ideal for a moulder with two top cutter heads. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.750" / Depth of Cut = .625" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
