Baseboard 5-3/4" - 24
Baseboard 5-3/4" - 24

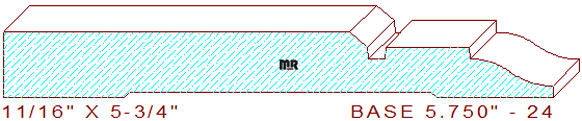

This distinctive 5-3/4" - 24 base moulding measures 5.750" wide by .687" thickness. The creative profile is comprised of a 3-5/8" broad flat line attached to a 3/16" wide by 5/32" deep bevel that transitions into a 3/16" wide groove, connected to a 7/8" wide by 1/8" tall raised fillet with a two tangent radius ogee at the top of the design.
Try one of our fancy base shoe or applied moulding designs on the bottom of the profile, find an irresistibly compelling pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.563
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$381.00
$381.00
Total:
$762.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.00
$407.00
Total:
$814.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$446.00
$446.00
Total:
$892.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
