Base Moulding 5-7/8" - 26

Base Moulding 5-7/8" - 26

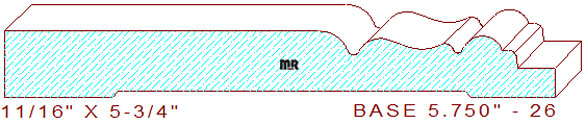

This unique base moulding 5-3/4" - 26 measures 5.750" wide by .687" thickness. The distinctive profile is comprised of a 2-9/32" wide horizontal line with a 5/16" radius edge, attached to a small cyma reversa flanked by sunk fillets that transitions into a half round circle with two stepped lines at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Utilize one of our many base caps or panel moulding profiles to complement this pattern, simply change the search sizes you want to view to find and create an innovative, one of a kind baseboard design.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.750" / Depth of Cut = .386" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
