Baseboard 5-3/4" - 29
Baseboard 5-3/4" - 29

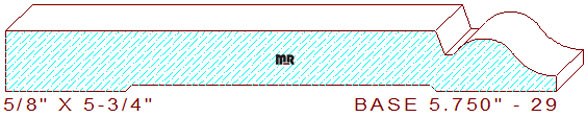

This lovely base 5-3/4" - 29 moulding measures 5.750" wide by .625" thickness. The good-looking profile comprises a 4-1/2" wide horizontal line with a 3/32" beveled edge attached to a 3/32" wide sunk fillet that transitions into a two tangent radius cyma reversa at the top of the design. We also have a beautiful door casing to complement this pattern for your review and consideration, door casing 3.500" - 204.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.468
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$381.00
$381.00
Total:
$762.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.00
$407.00
Total:
$814.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$446.00
$446.00
Total:
$892.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
