Baseboard 5-3/4" - 36
Baseboard 5-3/4" - 36

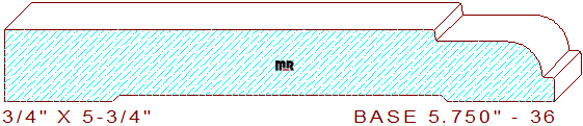

This 5-3/4" - 36 modern base moulding measures 5.750" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The contemporary profile is composed of a 4-1/2" broad straight line with an off-centered 1/8" vertical step, connected to a 1-1/8" broad line segment and a 3/8" rounded edge that joins to a 1/8" wide fillet with a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.696
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.00
$381.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$433.00
$407.00
Total:
$840.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$472.00
$446.00
Total:
$918.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
