Base Moulding 5-3/4" - 4

Base Moulding 5-3/4" - 4

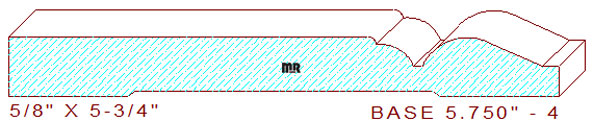

This creative base moulding 5-3/4" - 4 measures 5.750" wide by .625" thickness. The impressive pattern is comprised of a 3-27/32" wide horizontal line with a 3/32" eased edge, attached to a 3/8" quarter round arc and a 3/32" wide sunk fillet that transitions into a thumbnail shaped sloped arc with a 5/32" wide fillet at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost from not securing the table bearings before moving.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.750" / Depth of Cut = .311" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
