Baseboard 5-3/4" - 9

Baseboard 5-3/4" - 9

Baseboard 5-3/4" - 9

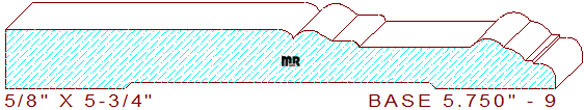

This beautiful 5-3/4" - 9 base moulding measures 5.750" wide by .625" thickness, allowing the detail to be milled from four-quarter lumber. The striking profile composes a three-inch broad straight line with an 11/64" rounded edge in the center, connected to a small thumbnail shaped arc that joins to a 9/32" wide area with a 5/64" eased edge, attached to a 1-5/32" wide sunk fillet that transitions into an 11/32" wide half round bead joined to a 5/16" quarter round arc, merged with two tiny perpendicular lines and a 5/32" quarter circle on the right side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.625
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$420.00
$420.00
Total:
$840.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
