Baseboard 5-7/8" - 1
Baseboard 5-7/8" - 1

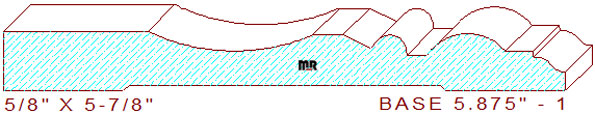

This intricate 5-7/8" - 1 base moulding measures 5.875" wide by .625" thickness, permitting the design to be machined out of four-quarter lumber. The beautiful profile composes a 1-1/2" broad flat line on the left. It's connected to a 1-23/32" long scotia derived from a 2-3/32" concave semicircle, joined with a 5/16" wide raised fillet and a 19/64" down-sloping angled line in the center. The remainder of the design attaches a thumbnail-shaped bead merged with a 7/32" sunk fillet, connected with a 13/16" wide convex arc with a 9/32" wide by 1/16" deep perpendicular line and a small ogee on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.875
Depth of Cut: 0.425
Bottom Cutter Head
Width: 5.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$387.50
$387.50
Total:
$775.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$414.00
$414.00
Total:
$828.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$453.75
$453.75
Total:
$907.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
