Base Moulding 5-15/16" - 3

Base Moulding 5-15/16" - 3

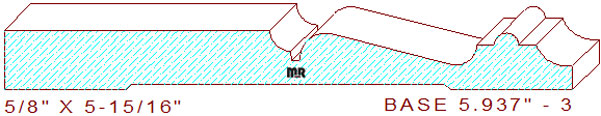

This colonial base moulding 5-15/16" - 3 measures 5.937" wide by .625" thickness. The classic profile is comprised of a 2-3/4" wide horizontal line with a 1/4" cove, joined to a 3/32" wide by 3/32" deep sunk fillet that transitions into a deep sloping bidirectional angled congee, connected to a 1/4" wide half round circle flanked by 3/16" wide lines with a 11/32" cove at the top of the design. We also have a smaller width version of this profile for your review and consideration, baseboard 4.500" - 21. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. You may have to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this detail.

We offer thousands of innovative moulding profiles designed to save valuable time and money in your demanding milling production schedule, try a few of our beautiful patterns today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.937" / Depth of Cut = .571" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
