Base Moulding 6"

Base Moulding 6"

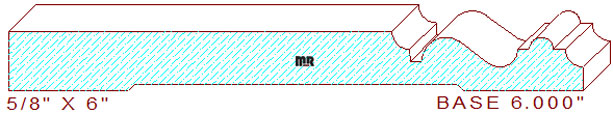

This colonial base moulding 6" measures 6.000" wide by .625" thickness. The ageless profile is comprised of a 4" wide straight horizontal line, connected to a 3/16" cavetto with a small vertical step, attached to a 1/8" wide sunken fillet that transitions into a fancy two tangent radius cyma reversa, joined to a 1/4" half round bead flanked by a small line segments and a 3/16" cove leaving a 1/4" thickness dimension on the thin side of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .375" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
