Base Moulding 6" - 1

Base Moulding 6" - 1

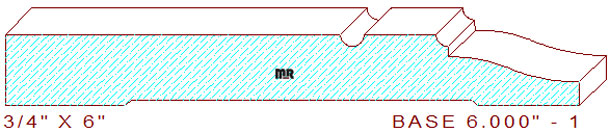

This distinctive base moulding 6" - 1 measures 6.000" wide by .750" thickness. The profile is comprised of a 3-1/2" wide horizontal line, connected to a 1/4" concave circle with an attached 3/4" wide fillet, joined to a 1/8" radius cove with a 1/8" vertical line that transitions into a shallow cyma reversa, leaving a 1/4" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel profile knives. Read this article to help understand how to align a CBN/borazon wheel to axial constant position on a Weinig R 960 profile knife grinder. During the machining process the knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
