Base Moulding 6" - 105

Base Moulding 6" - 105

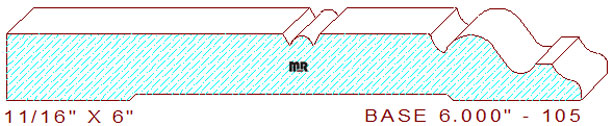

This striking base moulding 6" - 105 measures 6.000" wide by .687" thickness. The decorative design is comprised of a 4-7/16" wide horizontal line with an offcentered recessed bead flanked by small chamfers, joined to a 15/64" radius cove that transitions into a deep sloping cyma reversa, attached to a 3/16" wide raised fillet with a two tangent cyma recta at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .688" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
