Base Moulding 6" - 106

Base Moulding 6" - 106

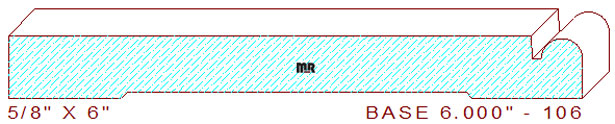

This single bead base moulding 6" - 106 measures 6.000" wide by .625" thickness. The profile is composed of a 7/16" wide half round circle with a 3/32" wide quirk attached, the bead is recessed by 1/32" below the surface plane to allow for sanding after production. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful baseboard pattern. Check out our updated tooling and supplies catalog for other quality products we supply for your moulder and tool knife grinding room. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this baseboard, one for milling the full 6" width, and the other for milling just the profile portion of the design.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .439" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
