Base Moulding 6" - 107

Base Moulding 6" - 107

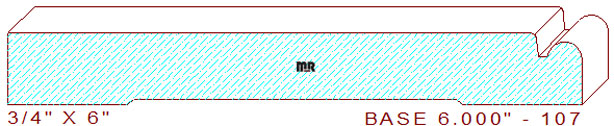

This single bead base moulding 6" - 107 measures 6.000" wide by .750" thickness. The profile is comprised of a 23/64" wide half round circle with an attached 3/32" wide sunken fillet, the half round bead is recessed by 3/32" below the surface plane for sanding after milling. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this baseboard pattern, one for milling the entire width of the detail, and the other for milling just the profile portion of the design, this will save time and resources if you have a two top cutter head moulder. From just an idea in one's mind, to reality in their home, our profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .404" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
