The professionally drafted cad dxf file contains two high precision template designs to create cutters for this gorgeous detail, one for milling the full profile at a max width of 7.375" wide, and the other for milling just the profile. This pattern will save time and resources when milling on a six spindle moulder with two top horizontal cutter heads, the first top straight cutters will mill to finish thickness, and the second top profile knives will mill only the detail portion of the design.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

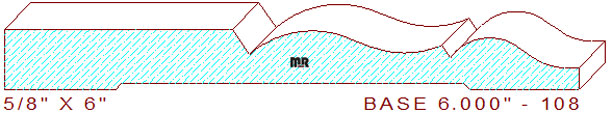

Width = 6.000" / Depth of Cut = .625" (top knives) & .062" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
