Base Moulding 6" - 110

Base Moulding 6" - 110

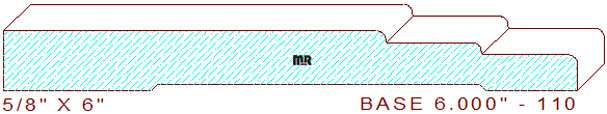

This tiered base moulding 6" - 110 measures 6.000" wide by .625" thickness. The stepped profile is comprised of a 4" wide horizontal line with a 1/8" deep step connected to two 1" wide by 1/8" deep stepped lines all with 3/32" radius edges, leaving a 3/8" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from. We offer a whole family of these type of stepped designs in the same width for your review and consideration, baseboard 6.000" - 9, 44, 47, 54, 69, 85, 101 and base molding 6.000" - 144.

Read our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and many more. Try our services, you'll be pleased with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .469" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
