We provide the cut steel size on all our template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

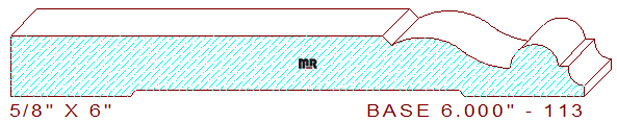

Width = 6.000" / Depth of Cut = .519" (top knives) & .063" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
