Base Moulding 6" - 115

Base Moulding 6" - 115

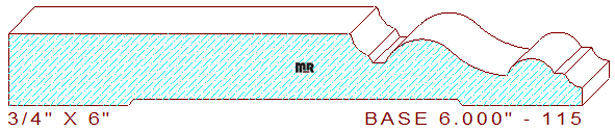

This colonial base moulding 6" - 115 measures 6.000" wide by .750" thickness. The profile is comprised of a 3-37/64" horizontal line, attached to a 17/64" radius cove and a 1/8" wide sunk fillet that transitions into a graceful cyma reversa, joined to a 1/2" wide half round circle connected to a 1/8" wide horizontal line with a 3/16" radius cove at the top of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

We invite you to search for other design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom profile designs.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .565" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
