Base Moulding 6" - 118

Base Moulding 6" - 118

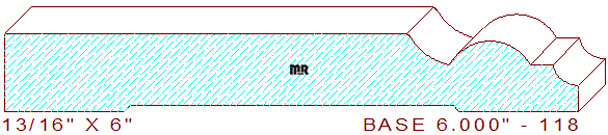

This creative base moulding 6" - 118 measures 6.000" wide by .812" thickness. The profile is composed of a 4-1/4" wide horizontal line with a 7/64" radius edge that transitions into a 19/32" radius cavetto, connected to a 27/32" wide half round circle with a 1/4" wide fillet and 17/64" cove at the top of the pattern. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. This design could also be used as a casing molding, simply shorten the width and add one of our enhancing backband profiles to the square edge.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this helpful resource will help potential customers experience the craftsmanship of your creative woodworking shop. While you're at it connect our moulding catalog to your website, it's free, you can't offer clients moulding profiles they don’t know are available.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .740" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
