Base Moulding 6" - 119

Base Moulding 6" - 119

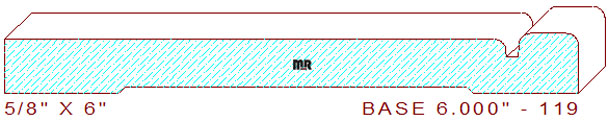

This modern base moulding 6" - 119 measures 6.000" wide by .625" thickness. The institutional profile is comprised of a 5-1/4" wide horizontal line at 9/16" thickness with a 1/8" eased edge, connected to a 1/8" wide sunk fillet that transitions into a 5/8" wide raised fillet also with 1/8" radius edges. The profile is milled on the moulder with the tall portion of the design up against the inside fixed fence enabling width changes with a simple radial adjustment of the left vertical cutter head. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We're delighted you found a functional profile that interest you, please consider all the other things we can do for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're just getting started in the industry, read some of our informational articles, they will help you with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 6.000" / Depth of Cut = .265" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
