This professionally drafted cad dxf file contains two high precision template designs to create cutters for this awesome baseboard detail, one for milling the entire width and the other for cutting just the profile portion of the design. From just an idea in one's mind, to reality in their home, our custom moulding profiles reflect the creative style of your imagination, let us help you design a beautiful pattern today.
For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

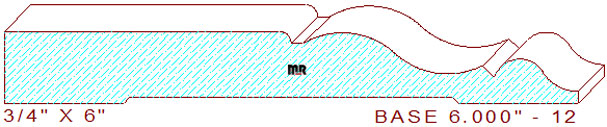

Width = 6.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
