Base Moulding 6" - 120

Base Moulding 6" - 120

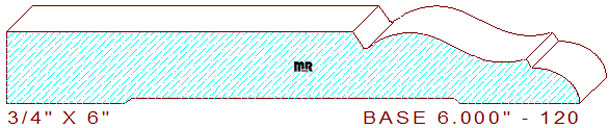

This designer base moulding 6" - 120 measures 6.000" wide by .750" thickness. The profile is comprised of a 3-5/8" wide straight line, connected to a 11/64" deep beveled line that transitions into a two tangent radius cyma reversa, joined to another smaller angled line with a 9/16" radius arc at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level, this commentary will insure prolonged use of your machinery while maintaining consistent perfection when grinding cutters.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .750" (top knives) & .063" (bottom cutters).
