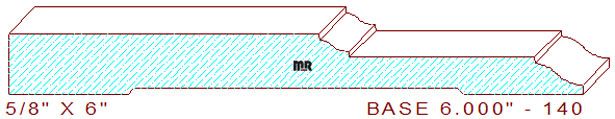

This Ogee Base Moulding 6" - 140 measures 6.000" wide by .625" thickness, the profile is comprised of a 3-1/4" wide and a 1-15/16" wide horizontal fillets which are connected to two cyma reversa/ ogee, the smaller one measures 5/16" wide and consist of two 3/16" tangent radiuses, the one positioned on the thinnest side of the pattern measures 1/2" wide and is comprised of two 3/8" tangent radiuses.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
