Baseboard 6" - 153
Baseboard 6" - 153

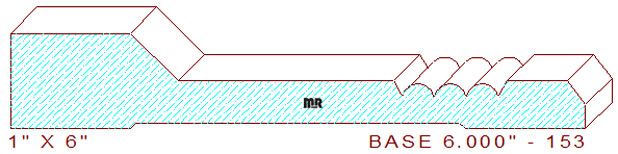

This unique 6" - 153 base moulding measures 6.000" wide by 1.000" thickness. The profile is comprised of a 1-1/4" wide fillet that transitions to a 1/2" thick elevation with a chamfer and attached 2-1/4" wide fillet, three half round beads flanked by chamfers and a 3/16" wide chamfer at the top of the design. The profile is oriented with the thickest portion of the pattern up against the inside fixed fence on the machine. This will enable the operator to laterally move the pressure shoe from the fence and set the pressure element on the widest flat portion of the design. The beads are lower below the flat surface by .030" for sanding purposes
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.813
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$394.00
Total:
$815.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$448.00
$421.00
Total:
$869.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$488.50
$461.50
Total:
$950.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
