Baseboard 6" - 154
Baseboard 6" - 154

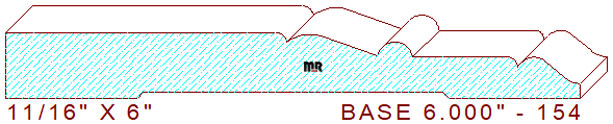

This beautiful 6" - 154 base moulding measures 6.000" width by .687" thickness, requiring a 6-1/4" wide blank of four-quarter lumber for milling on an industrial moulder. The sumptuous profile contains a 2-15/16" broad flat line with a 1/8" rolled inner edge on the top center. The rollover connects to a downsloping 3/8" radius convex arc tangent to an angled line joined to a 3/8" half-circle in the middle. The remaining portion of the pattern consists of a 1-3/32" wide flat area with a 3/32" eased edge merged with a 3/16" convex arc tangent to a downsloping angled line and a 1/4" concave semicircle, leaving a 5/32" thickness dimension on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
