Baseboard 6" - 162
Baseboard 6" - 162

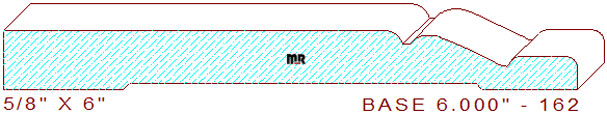

This fashionable 6" - 162 base moulding measures 6.000" width by .625" thickness, requiring a 6-1/4" wide blank of four-quarter lumber for milling on an industrial molder. The custom profile contains a 4-11/64" broad flat line with a 7/32" rolled inner edge on the top center. The rollover connects to a 1/16" wide sunk fillet joined to a 19/64" convex arc, tangent to a downsloping sixty-two-degree angled line merged with a 3/4" raised fillet with 1/8" rounded corners, leaving an 11/32" thickness dimension on the design's right side.
Try one of our fancy base shoes on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Let us assist you in shaping your home's astonishing architectural decor, one attractive profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
