Baseboard 6" - 172
Baseboard 6" - 172

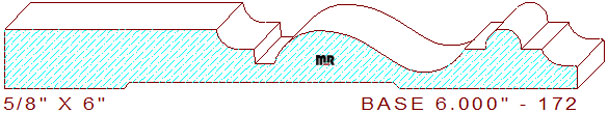

This sizeable 6" - 172 colonial base moulding measures 6.000" width by .625" thickness, permitting the use of four-quarter lumber for milling on an industrial-grade molder. The decorative profile contains a 2-7/32" full-line segment on the top left. Connected to a 17/64" elongated cove and a 9/64" deep by 13/64" broad sunk fillet joined to a graceful three tangent radii s-shaped curvature in the center. This area joins a 3/8" full half-circle flanked by a small horizontal line segment and a petite cong'e derived from a 1/4" concave semicircle with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.578
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
