Baseboard 6" - 182
Baseboard 6" - 182

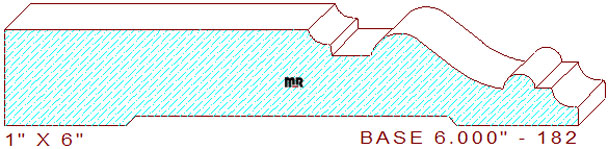

This bold colonial 6" - 182 baseboard moulding measures 6.000" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial-style molder. The pioneer profile is composed of a 3-11/64" broad flat line on the left, connected to a 13/64" cove with a 1/8" vertical step that joins to a 13/32" wide sunk fillet in the center, attached to an elevation changing two tangent radius cyma reversa that merges with an 11/32" wide half round bead, joined to an 11/64" line segment and a 7/32" cove with a 3/64" eased edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.969
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
