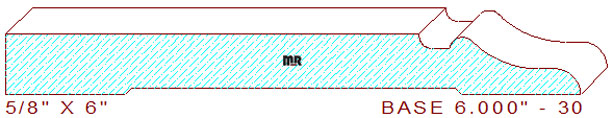

This Base Moulding 6" - 30 measures 6.000" wide by .625" thickness, with a .625" depth of cut on the top horizontal cutters. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Please search our backout category for a suitable relief cut for this detail, we have many available options to choose from.
The profile is comprised of a 4-5/16" wide straight fillet, connected to a 5/16" wide cong'e consisting of a 1/8" radius cove, that transitions into an elongated cyma reversa with a 17/64" radius edge located at the top of the pattern.
Architects, interior designers, lumber mills and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
