Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 6" - 32

Baseboard 6" - 32

Baseboard 6" - 32

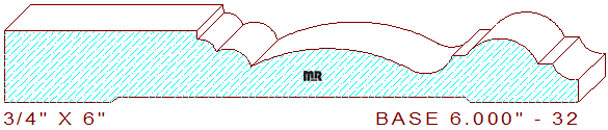

This opulent 6" - 32 base moulding measures 6.000" wide by .750" thickness. The gorgeous profile comprises a 2" broad horizontal line with a 3/32" vertical step, attached to 3/16" & 1/4" quarter circles that transitions into a beautifully shallow two tangent radius cyma reversa, joined to a 7/16" radius half round arc flanked by small horizontal segments, bound to a 1/4" cove leaving a 1/4" thickness dimension on the design's right edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$407.50
Total:
$815.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$434.50
Total:
$869.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
