Base Moulding 6" - 34

Base Moulding 6" - 34

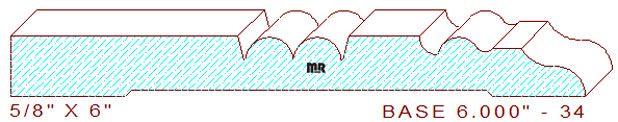

This Base Moulding 6" - 34 measures 6.000" wide by .625" thickness, the profile is full of unique geometrical shapes that really add a lot of style to this pattern. The detail is composed of two recessed by .010" (for sanding purposes) half round circles flanked by fillets that transform into a cavetto with a cyma reversa and fillet attached to a cyma recta at the top of the pattern. Please note the moulding knives will come within .020" of the bedplates under the top spindle of the moulder machinery.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
