Baseboard 6" - 37
Baseboard 6" - 37

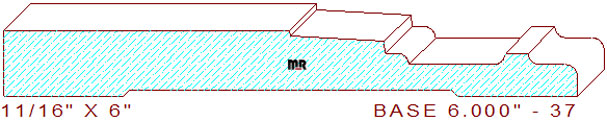

This unique 6" - 37 base moulding measures 6.000" wide by .687" thickness, enabling the pattern to be milled from four-quarter lumber. The intricately designed profile composes a three-inch broad straight line with a 1/16" drop in elevation on the top left. It's connected to a 3.232 degrees angle with a 1/8" vertical step that joins to a 1/8" broad line segment with a 1/8" rounded edge, attached to a one-inch wide cong'e derived from a 1/8" cove that transitions into a 15/64" wide raised fillet. It merges with a 33/64" wide bidirectional cong'e made from 1/8" quarter circles on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.604
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
