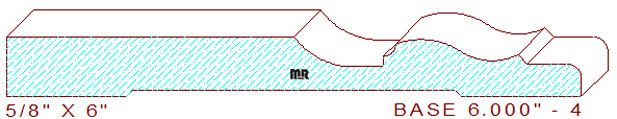

This 6" Distinctive Base Moulding - 4 measures 6.000" wide by .625" thickness, the pattern equally consist of two sections, the lower portion is flat, the upper section consist of a cong'e connected to a vertical fillet and a small cove, it then transforms into a shallow cyma reversa with a chamfer attached to a 9/16" wide fillet with a 5/32" radius at the top of the detail. There are two moulding template designs in the downloadable dxf file, one for milling the entire profile on a five spindle moulder and the other for cutting just the detail only portion on a six spindle moulder with two top horizontal cutter heads, this design will save you time and resources in production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
