Base Moulding 6" - 42

Base Moulding 6" - 42

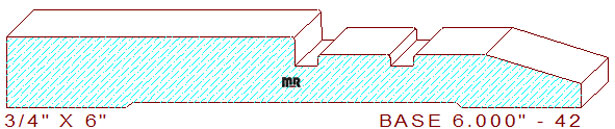

This Creative Base Moulding 6" - 42 measures 6.000" wide by .750" thickness with a .563" depth of cut for the top cutter head on the moulder. The pattern is comprised of 3" wide by 5/16" deep stepped fillet connected to two 1/4" wide by 1/8" deep grooves that are divided by a 3/4" wide fillet on each side that transitions into a 1" wide by 5/16" deep chamfer located at the top of the profile leaving 1/4" thickness at the top of the pattern. This professionally drafted cad dxf file contains two high precision moulding template designs for creating moulder cutters for this gorgeous base moulding profile, one is designed for the cutting full width of the pattern and the other one is for milling the profile only portion of the pattern saving you time and money in production cost.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
