Baseboard 6" - 46
Baseboard 6" - 46

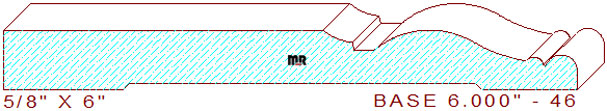

This fancy 6" - 46 base moulding measures 6.000" wide by .625" thickness, authorizing the pattern to be machined out of four-quarter lumber. The elegant profile is composed of a 3-11/32" horizontal line segment on the top left, connected to a shallow 17/32" cove and a 7/32" wide by 5/64" deep sunk fillet in the center, attached to a smooth two tangent radius cyma reversa with a tiny 11/64" wide bead and a 1/32" angled sunk fillet with a 21/64" wide half circle on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.589
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$421.00
$421.00
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$461.50
Total:
$923.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
