Base Moulding 6" - 52

Base Moulding 6" - 52

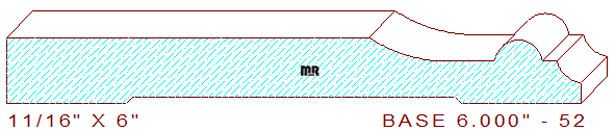

This Well Designed Base Moulding 6" - 52 measures 6.000" wide by .687" thickness, the profile portion measures 2-7/32" wide and consist of a 1-1/2" radius shallow cove, 1/4" radius half round circle, 5/32" wide fillet and a 5/16" radius cove. The dxf file has two template designs, one for a five spindle moulder and one for detail only which will save you time grinding and money on knife steel, this pattern requires a two top spindle moulder, the first top spindle will plane to thickness and the second top spindle will mill the detail only.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
