Base Moulding 6" - 58

Base Moulding 6" - 58

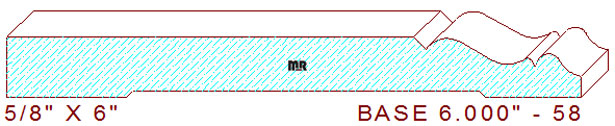

This Base Moulding 6" - 58 measures 6.000" wide by 625" thickness, with a .413" depth of cut on the top horizontal moulder cutters, please search our backout category for a suitable relief cut for this detail, we have a few to choose from.

The profile is comprised of a 4-1/4" wide straight edge fillet, attached to a 1/8" wide down sloping chamfer, that transitions into an elongated cyma reversa, joined to another smaller bevel, and a smaller, more compact cyma reversa positioned at the top of the pattern.

This professionally drafted cad dxf file contains two high precision moulding template designs to create moulder cutters for this gorgeous baseboard detail, one for the full width of the profile, the other for just the detail portion of the design.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
