Base Moulding 6" - 62

Base Moulding 6" - 62

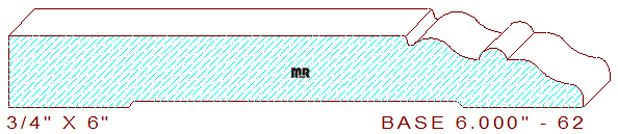

This Graceful Base Moulding 6" - 62 measures 6.000" wide by .750" thickness, the profile portion dimension is just over 1-7/8" wide, it is comprised of a beautiful cyma reversa with a chamfer on one side and a half round bead with a flat section that transitions into a cascading radiused cove at the top of the pattern. Caution: the moulding knives will come within .020" of the moulder bed plates while milling the pattern so changing the thickness to a smaller dimension is not an option for this profile.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
