Base Moulding 6" - 63

Base Moulding 6" - 63

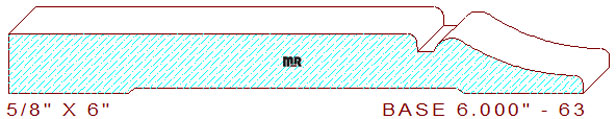

This Modern Baseboard 6" - 63 measures 6.000" wide by .625" thickness, with a .625" depth of cut on the top horizontal cutters. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Please search our backout category for a suitable relief cut for this detail, we have many available options to choose from.

The profile is comprised of a 4-17/64" wide radius edge fillet, connected to a 11/64" wide sunk fillet that transitions into an elongated cyma reversa, with a 3/32" radius edge located at the top of the pattern.

Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile that will compliment this pattern and make it irresistibly compelling, simply change the search sizes to find the one that compliments this beautiful pattern.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
