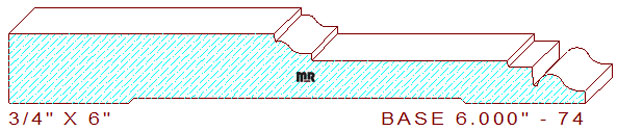

This Beautiful Base Moulding 6" - 74 measures 6.000" wide by .750" thickness, the profile portion of the pattern measures 3-1/4" wide, it consists of two sections, one portion is comprised of an ogee flanked by vertical and horizontal fillets, the uppermost segment consists of a stepped and sunken fillet that transitions into a cyma reversa at the top. The professional cad produced dxf file contains two high precision template drawings to create moulder knives for this specific detail, one for the full detail and the other milling just the profile portion only saving cost on knife steel and production time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
