Base Moulding 6" - 76

Base Moulding 6" - 76

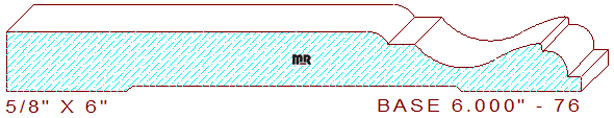

This Creative Base Moulding 6" - 76 measures 6.000" wide by .625" thickness, the profile is designed from a 4" wide straight line with a 1/4" radius edge that transitions into a 9/32" wide line connected to a scotia/cove with an attached ovolo positioned at the top of the pattern. This dxf file contains two high precision moulding template designs to create moulder knives for this specific detail, one for the full detail and the other milling just the profile portion only saving on knife steel cost and production time.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
