Base Moulding 6" - 85

Base Moulding 6" - 85

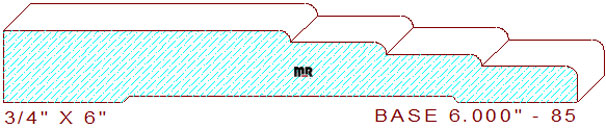

This four step base moulding 6" - 85 measures 6.000" wide by .750" thickness. The cascading profile is comprised of a 3" wide horizontal line with a 1/8" rounded step, connected to a series of three one inch wide by one eighth inch deep elevation changes with eighth inch eased edges. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs. We offer a small group of similar stepped designs in the same width for your review and consideration, baseboard 6.000" - 9, 44, 47, 54, 69, 101, 110, and base molding 6.000" - 144.

Try one of our fancy base shoe moldings on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided. Let us assist you in shaping your home’s astonishing architectural decor, one attractive profile at a time.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.000" / Depth of Cut = .625" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
